Male Elbows 90°

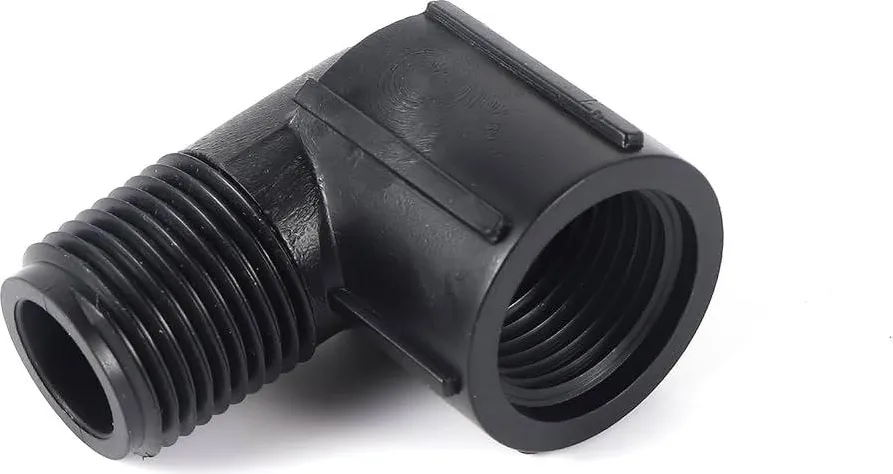

A 90° male elbow makes a clean right-angle turn on an irrigation lateral line, riser, or sprinkler head connection. The fitting carries a male pipe thread on its outlet, so it threads directly into the female socket of a standard fitting, valve, or sprinkler body for a fast, secure connection. Wherever a lateral line needs to change direction, step up to a riser, or feed a head, this elbow does the job without an extra adapter, and its molded body is built to hold up to the moisture, soil, and pressure of underground service.

These elbows are offered in two sizes — ½” and ¾” — to match the most common lateral and riser pipe used on residential and commercial irrigation jobs. Each size is stocked and sold by the case, which makes them an economical choice for contractors and distributors building out irrigation systems at volume rather than buying fittings one at a time. The durable injection-molded construction resists cracking and corrosion over a long buried service life, so the connection stays tight season after season once the system is backfilled.

One of the most common roles for a 90° male elbow is connecting a sprinkler head to the supply line, and it is also a key piece when you assemble a swing joint. A swing joint chains several fittings together to create a flexible, articulating link between the lateral line and the head, letting the head shift slightly under foot traffic or mower wheels instead of snapping off at the thread. Our step-by-step guide to building a swing joint walks through that assembly, and these male elbows pair naturally with swing pipe and risers to form the joint on site.

Within the broader irrigation fittings family, the 90° male elbow works hand in hand with our other threaded fittings to route water exactly where it is needed. For low-profile or close-quarters turns it complements our Marlex street ells, giving installers a complete set of angle and adapter options for laying out lateral lines, risers, and head connections cleanly across the whole system.
